Action Button & Repeating Fields

June 22 (5 years ago)
Coal Powered Puppet
Pro
Sheet Author

Can an action button be used in a repeating section?  I can't find any documentation about it.  Not saying said documentation is there, just that I have yet to find it.

My current project is using an action button to open up a hide/show area (instead of a styled checkbox).  Simply adding "repeating_foo:" and  "repeating_foo_" to the associated sheet workers doesn't change anything; the button is not visible.

June 22 (5 years ago)
GiGs
Pro
Sheet Author
API Scripter

Action buttons can be used in repeating sections. Can you post the sheet worker, and the relevant the css and part of the repeating section?

June 22 (5 years ago)

Edited June 22 (5 years ago)
Coal Powered Puppet
Pro
Sheet Author

html

<fieldset class="repeating_spells">
    <!-- Extra crap removed -->

    <div class="sheet-row">
	<div class="item 40">
	    <input type="hidden" class="direction" name="attr_spell_expand" value="right" />
	    <button type="action" class="direction" name="act_spell_expand_toggle" >
	        <span class="down">▼</span>
	        <span class="right">►</span>
	    </button>
	</div>

    </div>
    <input type="hidden" class="direction" name="attr_spell_expand" value="right" />
    <span class="hide_2">Stuff</span>

</fieldset>


And the css

/*-----showhide-----*/
/*-----showhide-----*/
button.sheet-direction {
  margin: 0;
  overflow: visible;
  text-transform: none;
  border-style: none;
  padding: 0;
  background: transparent;
  cursor: pointer;
  outline-style: none;
}

/* Hide the section(s) that do not match the attribute value */
input.sheet-direction:not([value="down"]) + button.sheet-direction > span.sheet-down {
  display: none;
}
input.sheet-direction:not([value="right"]) + button.sheet-direction > span.sheet-right {
  display: none;
}
/* Hide the section(s) that do not match the attribute value */
input.sheet-direction:not([value="right"]) ~ span.sheet-hide_1 {
  display: none;
}
input.sheet-direction:not([value="down"]) ~ span.sheet-hide_2 {
  display: none;
}
June 22 (5 years ago)
GiGs
Pro
Sheet Author
API Scripter

What about the sheet worker?

June 22 (5 years ago)
Coal Powered Puppet
Pro
Sheet Author

Brain fart.

  on("clicked:repeating_spells:spell_expand_toggle", function() {
    // Check the current value of the hidden attribute.
    getAttrs(["repeating_spells_spell_expand"], function(v) {
      // Toggle the hidden attribute value between "down" and "right"
      setAttrs({
        "repeating_spells_spell_expand": v["repeating_spells_spell_expand"] !== "down" ? "down" : "right"
      });
    });
  });
June 22 (5 years ago)

Edited June 22 (5 years ago)
GiGs
Pro
Sheet Author
API Scripter

This was a tricky one. You had two problems, and it looks like one is a bug with roll20.

If you have an underscore in the button name, it doesnt get triggered. I changed this

act_spell_expand_toggle

to

act_spell-toggle

to get it working.

There's a similar problem with repeating section names, which cant have a second underscore either.

The second problem is, action buttons dont get the row id automatically, so you need to supply it using the eventInfo object.

Here's code that works, assuming you rename the button as above:

    on("clicked:repeating_spells:spell-toggle", function(eventInfo) {
        // Check the current value of the hidden attribute.
        const rowid = eventInfo.sourceAttribute.split('_')[2];
        getAttrs([`repeating_spells_${rowid}_spell_expand`], function(v) {
          // Toggle the hidden attribute value between "down" and "right"
          setAttrs({
            [`repeating_spells_${rowid}_spell_expand`]: v[`repeating_spells_${rowid}_spell_expand`] !== "down" ? "down" : "right"
          });
        });
    });

Note that if this looks unfamiliar:

`repeating_spells_${rowid}_spell_expand`

it's just the same as doing this:

"repeating_spells_" + rowid + "spell_expand"


eventInfo works like values in getAttrs, and gives you a bunch of properties you can access. One is eventInfo.sourceAttribute

That gives you the full name of the button clicked, like so

console.log(eventInfo.sourceAttribute);
// gives: "repeating_spells_-M8Ja-GEzzNL4B3taRYD_spell-toggle"

We can use split("_") to turn that into an array, and split("_")[2] gives the row id.


It's all a bit more complicated than it needs to be. It's a shame it doesnt work as smoothly as attributes.

June 22 (5 years ago)
GiGs
Pro
Sheet Author
API Scripter

Note: in case you already grabbed the code above. I had a typo on the first line, which should be

on("clicked:repeating_spells:spell-toggle", function(eventInfo) {

It's fixed now.

June 23 (5 years ago)
vÍnce
Pro
Sheet Author


GiGs said:

This was a tricky one. You had two problems, and it looks like one is a bug with roll20.

If you have an underscore in the button name, it doesnt get triggered. I changed this

act_spell_expand_toggle

to

act_spell-toggle

to get it working.

This has tripped me up more than once...

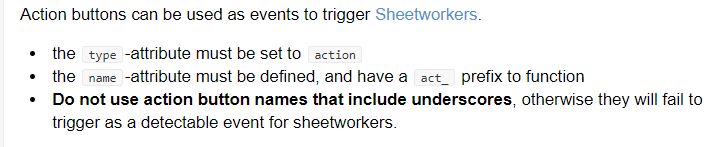

I just updated the wiki to help avoid this pitfall: https://wiki.roll20.net/Button#Action_Button


June 23 (5 years ago)
GiGs
Pro
Sheet Author
API Scripter

Good thinking. I was planning to update the wiki, but had to leave the PC for a while then forgot about it.

June 23 (5 years ago)
Coal Powered Puppet
Pro
Sheet Author

Yawl are awesome.,  This works great.  Thank you both.
