[Script]Help with applying Custom Status Markers with Api

updating a older script from before Custom Status Markers

This works if the Status marker is from the default set

// MISERABLE
    // this initiates the attribute 'miserable' not only the value of it
    var miserable_attribute = findObjs({
        _characterid: characterid,
        _type: 'attribute',
        name: 'miserable'
    })[0] || createObj('attribute',{characterid: characterid, name: 'miserable'});
    if (
        // hope is below or equal shadow, but not if shadow is 0
        (parseInt(hope, 10) <= parseInt(total_shadow, 10) && parseInt(total_shadow, 10) != 0) ||
        // in case it has been set manually by the player, e.g. as result of a hazard
        (miserable === '1')
    ) {
        // optional: send a message to everyone
        // but send the message only on state changes
        if (miserable === '0') {
            sendChat('character|'+characterid, '/me is miserable!');

            miserable_attribute.set('current', '1');
        }
        tokens.forEach(function(token) {
            // #98000
            token.set('status_bleeding-eye', '0');
        }, this);
        }
    else if (
            (miserable === '0') ||
            (parseInt(hope, 10) > parseInt(total_shadow, 10))
        ) {

            miserable_attribute.set('current', '0');

            tokens.forEach(function(token) {
                // transparent
                token.set('status_bleeding-eye', false);
            }, this);
        }
    else {
        return;
    }
    }

However if I change the bleeding-eye to my-status-marker (my-status-marker is the name of the custom status marker image) the image is on a custom status marker set yes its in my library and set in game but does not work.

so the question is do we have to add something to the call, to be able to use custom status marker sets from the API, I couldn't find any documentation on this. any help would be appreciated

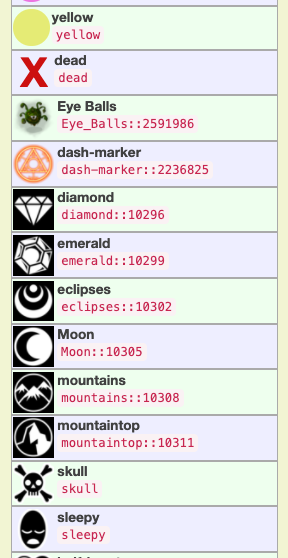

You need to use the Tag name of the Token Marker.  You can see them in the help for TokenMod, or here's a little script that will whisper you a list of them (requires libTokenMarkers from the 1-click):

!list-sm

/* global libTokenMarkers */
on('ready', ()=>{

  // Make sure libTokenMarkers exists, and has the functions that are expected
  if('undefined' === typeof libTokenMarkers
    || (['getStatus','getStatuses','getOrderedList'].find(k=>
      !libTokenMarkers.hasOwnProperty(k) || 'function' !== typeof libTokenMarkers[k]
    ))
  ) {
    // notify of the missing library
    sendChat('',`/w gm <div style="color:red;font-weight:bold;border:2px solid red;background-color:black;border-radius:1em;padding:1em;">Missing dependency: libTokenMarkers</div>`);
  } else {

    const c = (()=>{
      let last = '#eeeeff';
      return () => {
        last = ('#eeeeff' === last ? '#eeffee' : '#eeeeff');
        return last;
      };
    })();

    const fmtMarker = (m)=>`<div style="background-color: ${c()}; border: 1px solid #aaa; padding: .1em;">${m.getHTML(3,"float:left;")}<div style="float:left"><b>${m.getName()}</b><br><code>${m.getTag()}</code></div><div style="clear:both;"></div></div>`;

    // Watch for chat messages
    on('chat:message',(msg) => {
      // when `!set-sm` occurs, do something
      if('api'===msg.type && /^!list-sm(\b\s|$)/i.test(msg.content)){
        let who = (getObj('player',msg.playerid)||{get:()=>'API'}).get('_displayname');

        // get all the markers that match the first argument
        let markers = libTokenMarkers
          .getOrderedList()
          .map(fmtMarker)
          .join('');

        sendChat('All TokenMarkers',`/w "${who}" <div style="background-color:#ccc;">${markers}</div>`);
      }
    });
  }
});

Thank You Aaron as always Your the best
